Aspendose PER 150


Properties :

• Double oem peristaltic on single body (detergent and rinse)
• Single signal input operation
• 24 VAC-VDC and 220 VAC (with transformer) operation
• Individual adjustable flow rate adjustment for 2 pumps
• Individual premium buttons for 2 pumps
• Easy assembly and intervention with hinged, special angle, opening front cover, slide
mounting apparatus
• Motor protection feature with electronic circuit.
• Being able to work in all conveyor, guillotine and under-counter machines thanks to the
durable roller system, engine, and hose structure



Models :

Stock Code Model Description
202230050000000 PER 150 ASPENDOSE Double-Headed Peristaltic Dosing Pump For Dishwashers





Technicial Specifications :

Model 5,1L/0,5B D 2,8L/3B R
Application Chemical D (Detergent) R (Rinse)
Min./Lt (Lt/h) 0,7 0,5
Max./Lt (Lt/h) 5,1 2,8
Max./P (Bar) 0,5 3
Suction Connection (mm) 4x6 4x6
Injection Connection (mm) 4x6 4x6
Supply Voltage (Volt) 24V AC-DC 220 VAC*
Watt (W) AC 6-8W DC 4W
Product Weight (kg) 0,635
Body (IP) 65
Max. Temp. (ºC) For Ambient:0-45         For Chemical:0-45

* Value provided by transformer





Spare Parts - Options :

Image Stock Code Stock Name Description
  600110800100100 SUCTION SET 4X6 ASPENDOSE CERAMIC Suction Set With 4X6 mm Connection, Pp / Ceramic.For All
Models.
 600110700113100 INJECTION SET ASPENDOSE 4X6 PVDF Pvdf Injection Kit With 4X6 mm Connection. For Detergent Side.
   600110700211100 INJECTION SET METAL 4X6 V ASPENDOSE Injection Kit Pvdf-Ss With 4X6 mm Connection.For Rinse Side.
   500010066120000 NOZZLE KIT ASPENDOSE Pvdf Nozzle Of Gradual Hose And Injection Kit. For Rinse Side.

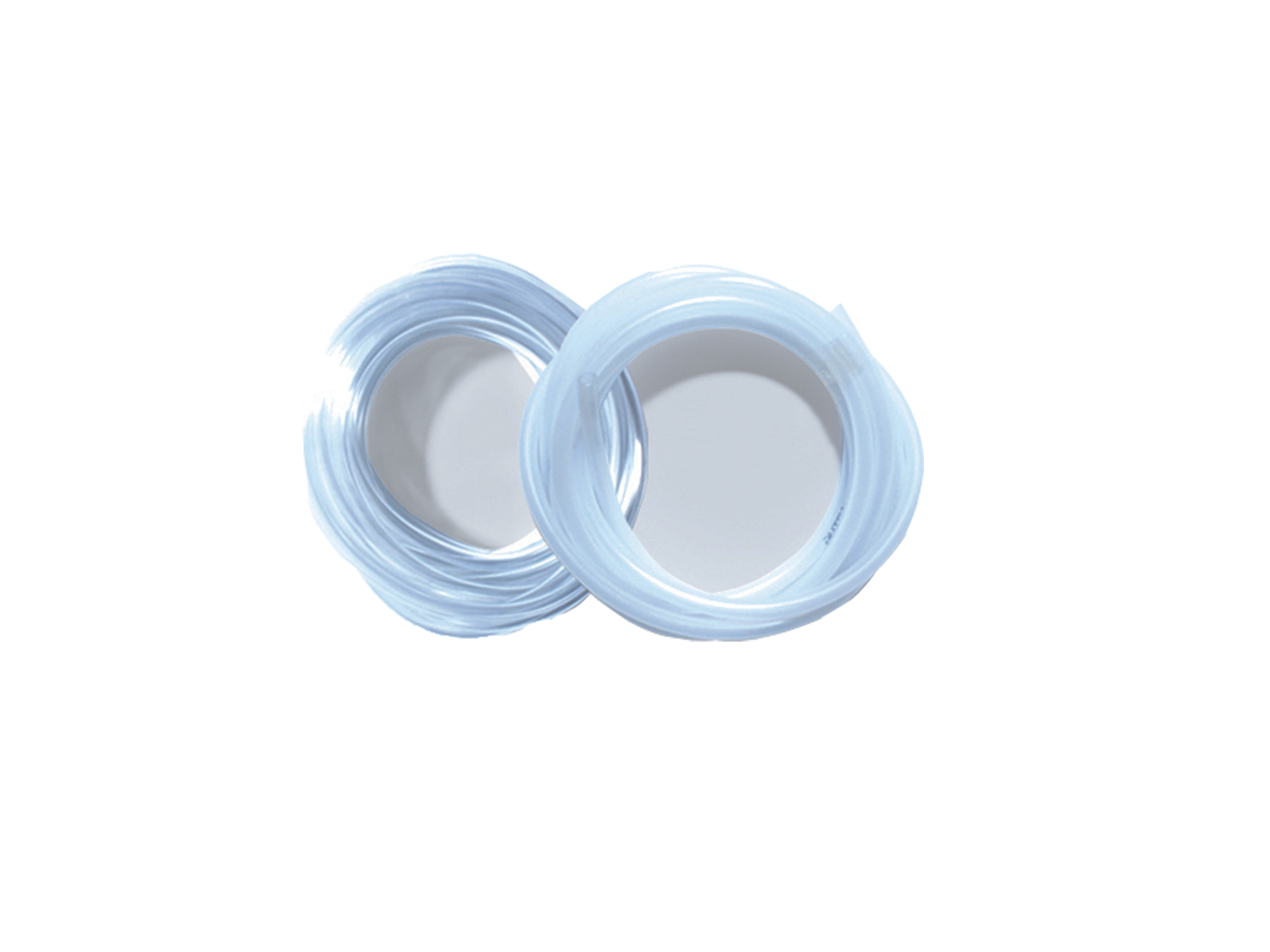

   600110500000000 HOSE SET 4X6 ASPENDOSE Hose Set For Suction And Injection Connections. For All Models
   600110400800000 MOUNTING SET ASPENDOSE Set Of Screws And Anchors For Wall Mounting. For All Models
   705130100000001 E POWER TRANSFORMATOR 12W 23V WITH
CABLE ELKOM (13)		 220Vac- 24V Transformer. For Per 200 Models
 410200011000001

PVDF NOZZLE TEE PVDF CONNECTION TEE

 T Pvdf Of Gradual Hose And Injection Kit Connection Parts. For
Rinse Side.
